| 水封截止阀 |
| 发表时间：2011-5-26 文字 〖 大 中 小 〗 阅读次数：5271 [关闭窗口] |
|
 |
|
公称通经DN |

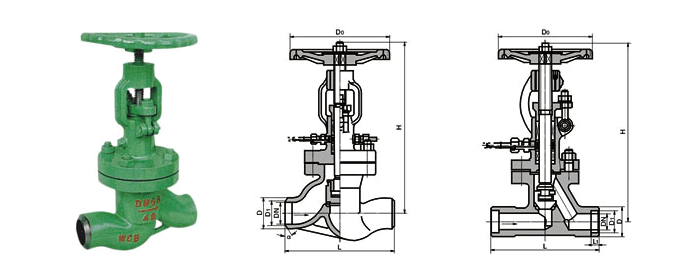

主要外形尺寸和连接尺寸(mm) |
WT(kg) |
| L |
D1 |
D2 |
H |
D0 |
| DS/J61H-25 |
| 10 |
130 |
36 |
15 |
10 |
120 |
4.8 |
| 15 |
130 |
36 |
19 |
11 |
120 |
5.0 |
| 20 |
150 |
44 |
26 |
11 |
140 |
7.3 |
| 25 |
160 |
44 |
33 |
12 |
140 |
8.2 |
| 32 |
180 |
48 |
34 |
- |
180 |
12 |
| 40 |
200 |
55 |
40 |
- |
200 |
15 |
| 50 |
230 |
64 |
50 |
- |
250 |
25 |
| 65 |
290 |
82 |
65 |
- |
250 |
38.5 |
| 80 |
310 |
94 |
78 |
- |
300 |
49 |
| 100 |
350 |
117 |
97 |
- |
350 |
64 |
| 125 |
400 |
144 |
122 |
- |
400 |
83 |
| 150 |
480 |
170 |
148 |
- |
400 |
94 |
| 200 |
600 |
220 |
197 |
- |
400 |
152 |
| DS/J61H-40 |
| 10 |
130 |
38 |
15 |
- |
120 |
5.3 |
| 15 |
130 |
38 |
19 |
- |
120 |
5.7 |
| 20 |
150 |
47 |
26 |
- |
140 |
7.6 |
| 25 |
160 |
47 |
33 |
- |
160 |
8.8 |
| 32 |
180 |
53 |
34 |
- |
160 |
13.2 |
| 40 |
200 |
57 |
40 |
- |
200 |
16.5 |
| 50 |
230 |
68 |
50 |
- |
250 |
26 |
| 65 |
290 |
85 |
65 |
- |
280 |
41.3 |
| 80 |
310 |
98 |
78 |
- |
320 |
51.5 |
| 100 |
350 |
122 |
97 |
- |
350 |
69 |
| 125 |
400 |
148 |
122 |
- |
400 |
89 |
| 150 |
480 |
176 |
148 |
- |
400 |
98 |
| DS/J61H-64 |
| 10 |
130 |
38 |
15 |
- |
140 |
6 |
| 15 |
210 |
38 |
19 |
- |
140 |
6.4 |
| 20 |
230 |
47 |
26 |
- |
160 |
8.4 |
| 25 |
230 |
47 |
33 |
- |
180 |
9.6 |
| 32 |
260 |
53 |
34 |
- |
200 |
23 |
| 40 |
260 |
57 |
40 |
- |
250 |
34 |
| 50 |
300 |
70 |
50 |
- |
280 |
46 |
| 65 |
340 |
86 |
65 |
- |
320 |
67 |
| 80 |
380 |
100 |
78 |
- |
360 |
85 |
| 100 |
430 |
124 |
97 |
- |
400 |
97 | 文章分页：1
|
|
|
|
|
